Wireless Handheld Ultrasound Specialized for Swine

The first wireless ultrasound is designed and built specialized for swine and for outdoor environments. To examine swine for pregnancy to reduce non-productive days and routinely evaluate the overall health status.In the near future, more ultrasounds will be introduced specialized for other farm animals.

Improve Swine Production

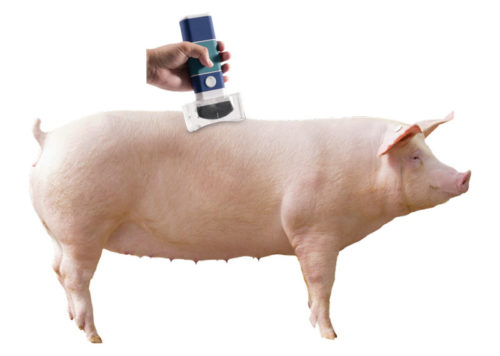

Stand-off tool,made of TPU material,makes backfat thickness measurement a breeze. Backfat thickness is important in swine production and a significant parameter to be considered when selecting gilts into the breeding herds.

High Quality Images

The convex probe producing the high quality images can detect the pregnancy as early as 17 to 20 days.Identifying the uterine horn and embryos is easy with the high resolution images. This helps for accurate detection of the early pregnancy to reduce non-productive days and also for the preventive care of uterus health examin ation. the breeding herds.

Easy-to-Use System

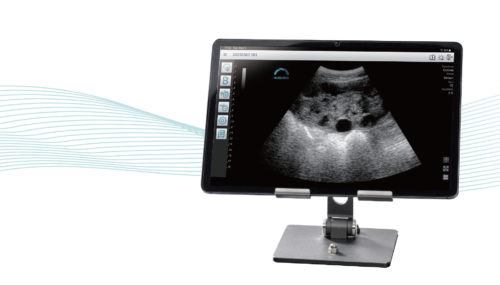

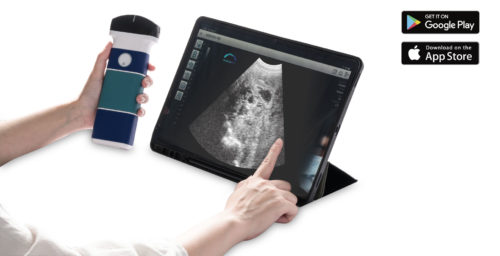

The easy-to-use system comes with a present setting for swine. It also supports customized features for more advanced functions. More presents will be available when probes for other farm animals are introduced. The system works with most smartphones and tablets (Android and iOS). The App is available in the Google Play and App Store.

Efficient Connectivitys

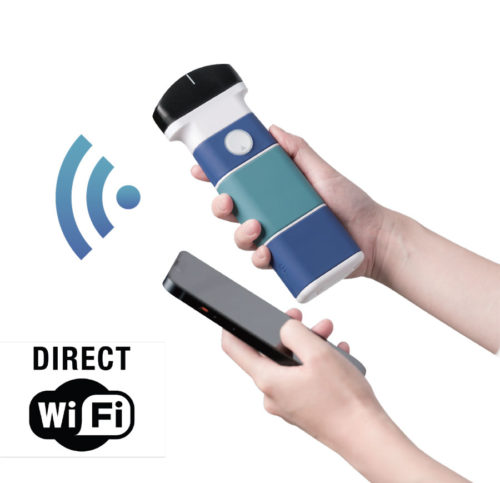

Wi-Fi Direct technology allows for direct device-to-device communication,even with no internet connection. The probe is connected directly to the smartphone or tablet without the external network, reducing data transmission delay and improving image clarity.

Durable Quality

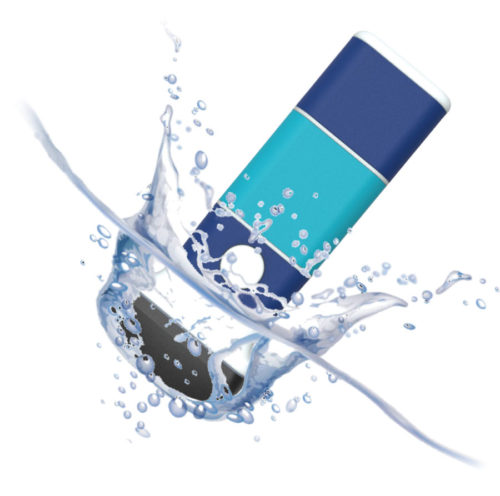

The probe is cable free. The robust design is waterproof, dustproof, and mud-proof for the outdoor environment. Wash and rinse the probe under a faucet.

Technical Datasheet

Model

LUS110C

Probe

128 elements Convex

Center Frequency

3.2 MHz

Frequency Bandwidth

2.0-5.0 MHz

Depth

25.2 cm / 10.0 in

Radius of Curvature

60.0 mm / 2.4 in

Field of View

60°

Display Mode

B-Mode

Connectivity

Wi-Fi Direct, 802.11n/2.4G

Battery

Rechargeable 6000mAh Li-ion Battery

Waterproof

IP65

Dimensions

187x74x40 mm (7.36x2.91x1.57 in)

Weight

388 g (13.7 oz)

Accessories

Adjustable tablet stand holder

stand holderStand-off tool for backfat thickness measurement

IP67 waterproof rugged carrying cases
